PULLING WINCHES FOR CONSTRUCTION AND INDUSTRY
Dal Pozzo and TMA supply different kinds of pulling winches for uses in industrial and aconstruction works and maintenance.
Our flexibility derives from beside the wide range of hydraulic products, we've got electrics as well and the experience in order to provide tailored solutions.
FLEXIBILITY IN APPLICAION

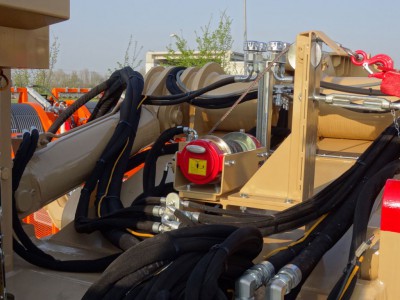

Our winches count on a wide list of possible utilisations in construction and industry, even on fix structures.
The electric winches fed by 220V/380V supply make possible to mount them in different kinds of jobsites.
The L-shaped beams without holes let the customer select the specific drilling configuration for the structure of destination.
ACCESSORIES
In pulling aplication, being the rope axis quite horizontal, it's not always possible to get a satisfactory tensive pre-load of the rope is unloaded.
Il
pressure roller(A) reduces the effects of the poor tensive pre-load that could also bring on the mess coiling seen on the second picture.
Il fairlead rollers(B) it helps to preserve the rope from friction against othe rsurfaces and edges in case of deflexion (fleet angle up to 15°) that may damage the rope in case it happens.
The mechanic kick-out can be actuated also by pneumatic way in order to allow its activation even if the operator isn't close to the winch
We also offer remote control systems with harness or wireless
RANGES
- DPH
(motore idraulico)
da 1.000 a 13.500 kg - DPE
(mot. Elettrico 12/24V)
da 1.000 a 4.800 kg - DPE A
(electric winches 220V/380V)
2.700 kg - TMT
from 5.500 to 30.000 kg - RA
from 10.000 to 30.000 kg
Identification of the winch
The series and models allow the quick identification of the winch. For instance, “Series 8500 mod. DPH” --> DPH8500 tell us the two main features of the product:
- Series 8500 = Direct line pull of kg 8500 , gauged by dynamometer*
- Mod. DPH = worm drive hydraulic winch
* = the pulling capacity on plane ground (indicative mass of the vechicle to be recovered) corresponds to about three times the direct line pull (direct line pull : pulling capacity = 1 : 3)
For TMT and RA, the description uses to provide the direct pull force in matric quintals (100Kg) @ 1st layer. In othere cases /like TMT-2, it indicates the size of the drum
